Manufacturing

Test Content

Triple Shot Mold

A Combination of Skill and Scale

15 facilities. 97 presses. 1 million square feet of manufacturing space. This is where our expertise takes form.

From molding to assembly and finishing, we assist our customers from original idea to finished solution. We also manufacture our own product lines. This is all done in a lean manufacturing environment, where waste is reduced and efficiency is maximized. At Cascade Engineering, we have the ability to provide a wide variety of molding processes, using the latest methods, for virtually any application.

Injection Molding

It’s our core competency and the platform on which our manufacturing is based. Our injection molding capabilities span a full range of materials, from engineered plastics to recycled polymers. We host one of North America’s largest molding machines at 9,000 tons. With 97 molding machines ranging from 50T to 9,000T, we can mold small and large parts, allowing for complex geometries, high-quality finishing, and structural integrity.

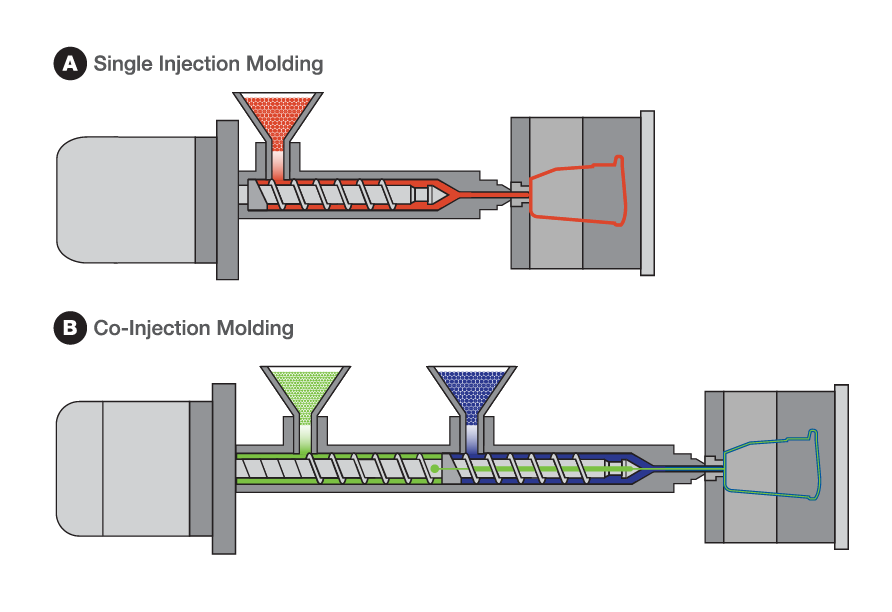

Single Injection and Co-Injection Molding Illustrations - Cascade Engineering

Multi-Shot Molding

By injecting two or three materials into a mold simultaneously in specific areas, we’re able to create unique designs and functional features. Combining materials this way also creates design aesthetics, increased functionality, durability, and quality.

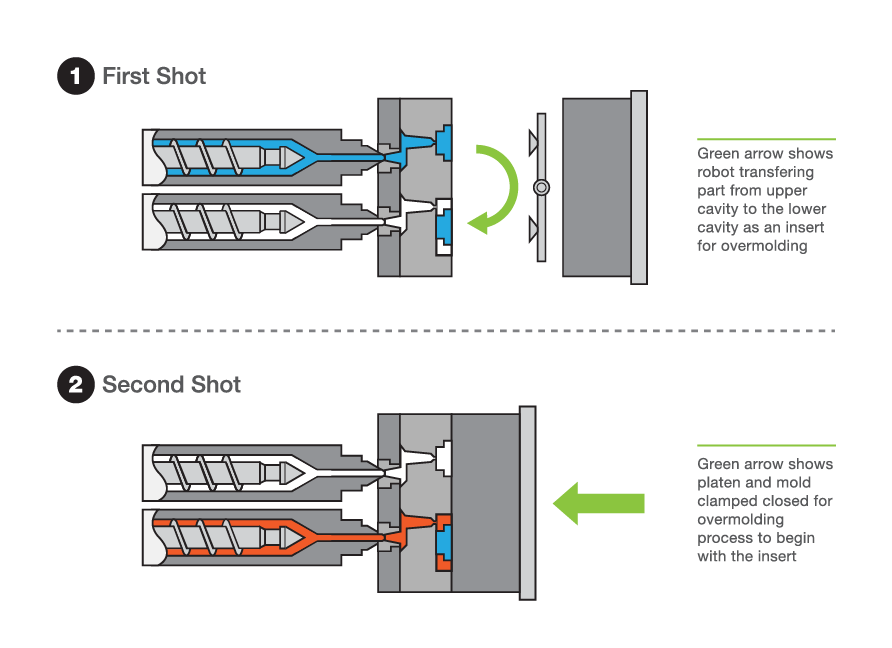

Double Shot Injection Molding
Double Shot Injection Molding
Gas Assist Molding

Injecting gas during the molding process pushes resin to the outer edge of the cavity, providing uniformity while offsetting the effects of resin shrinkage. This creates greater consistency, minimizes warp, reduces the part’s weight, and increases design freedom.

Insert Molding

Multiple parts become a single component with the injection of thermoplastic. By creating one strongly bonded part, we can reduce assembly and labor costs, enhance design flexibility, minimize size and weight, and increase the part’s physical strength.

3D Suction Blow Molding

This process creates lighter-weight products that reduce energy blow-off, increasing engine efficiency in automotive applications. A multi-point seal design enables sequential control of hard and soft material, tailoring the part’s physical properties for ideal strength, flexibility, and sealing.

Decorative Films & Coating


Non-VOC options offer a sustainable solution over conventional paint finishing—both environmentally and financially. Depending on the end requirements, numerous options are available: pre-formed insert paint films (bright color options), molded-in color resins, UV-cured coatings, and in-mold coatings.

In-Mold Labeling


For graphics that stand out and stand up, there’s in-mold labeling. A label is placed in the mold, hot plastic permeates the label, and language/graphics become permanently integrated with the object. Years ago, we pioneered the method of in-mold barcode labels in carts, enabling better asset tracking and management in the real world.

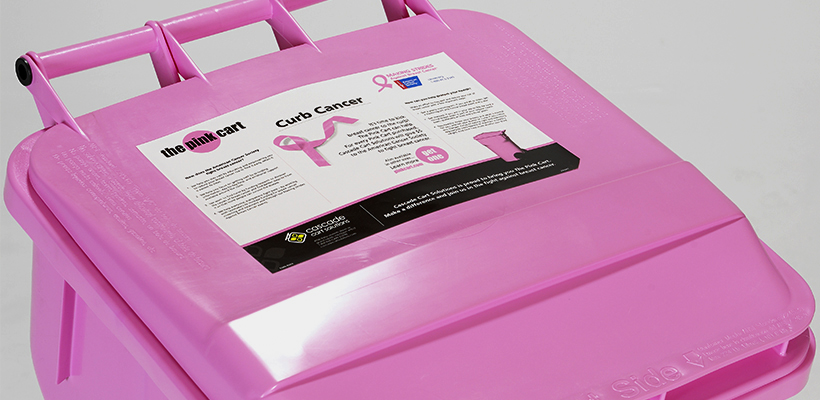

In-Mold Labeling Example on Pink Cart Lid - Cascade Cart Solutions

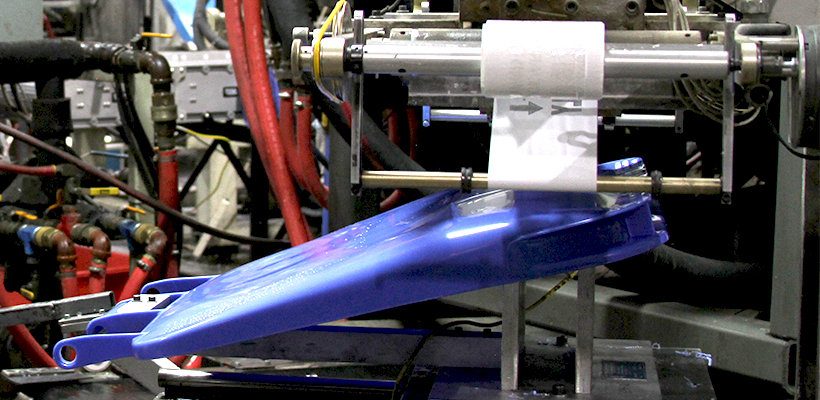

Post Mold Labeling


Utilizing hot stamping, we’re able to provide information or brand identification once a product is molded. In applications like waste and recycling containers, hot stamping enables customers to display company or city logos, serial numbers, and unique program instructions.

Post Mold Labeling and Hot Stamping

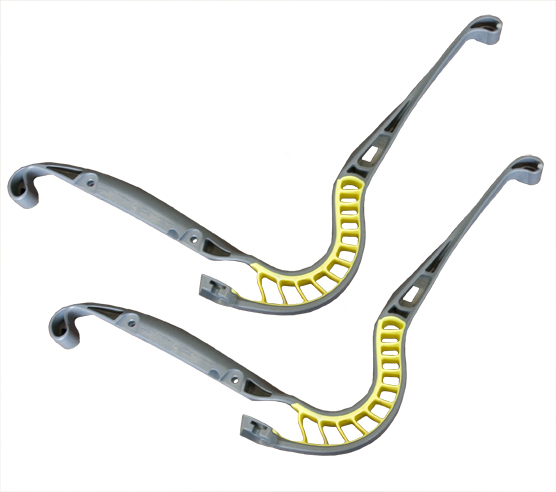

Material Expertise

No matter the product or manufacturing method, material matters. From recycled HDPE to our own specialty compounds, our expertise allows us to match the ideal material(s) with the design vision and end use in mind.

Material Expertise

Custom Compounding

For specialty applications, we develop and manufacture high-performance thermoplastic materials in-house. Whether for industrial uses or consumer goods, we rise to the challenge of formulating completely customized compounds.

Custom Compounding

Automated Assembly

Assembly cells equipped with robotics, camera control units, and poke yoke systems allow the production of millions of units per year. We manufacture on a semi-automated or fully automated basis and have labeling capabilities that ensure total traceability for every assembled part.

ILVS

In-line vehicle sequencing (ILVS) minimizes inventory levels in accordance with a lean manufacturing environment. From our facilities, inventory is released strategically and in coordination with the production schedule, reducing the assembly required at final production.

In-line Vehicle Sequencing
